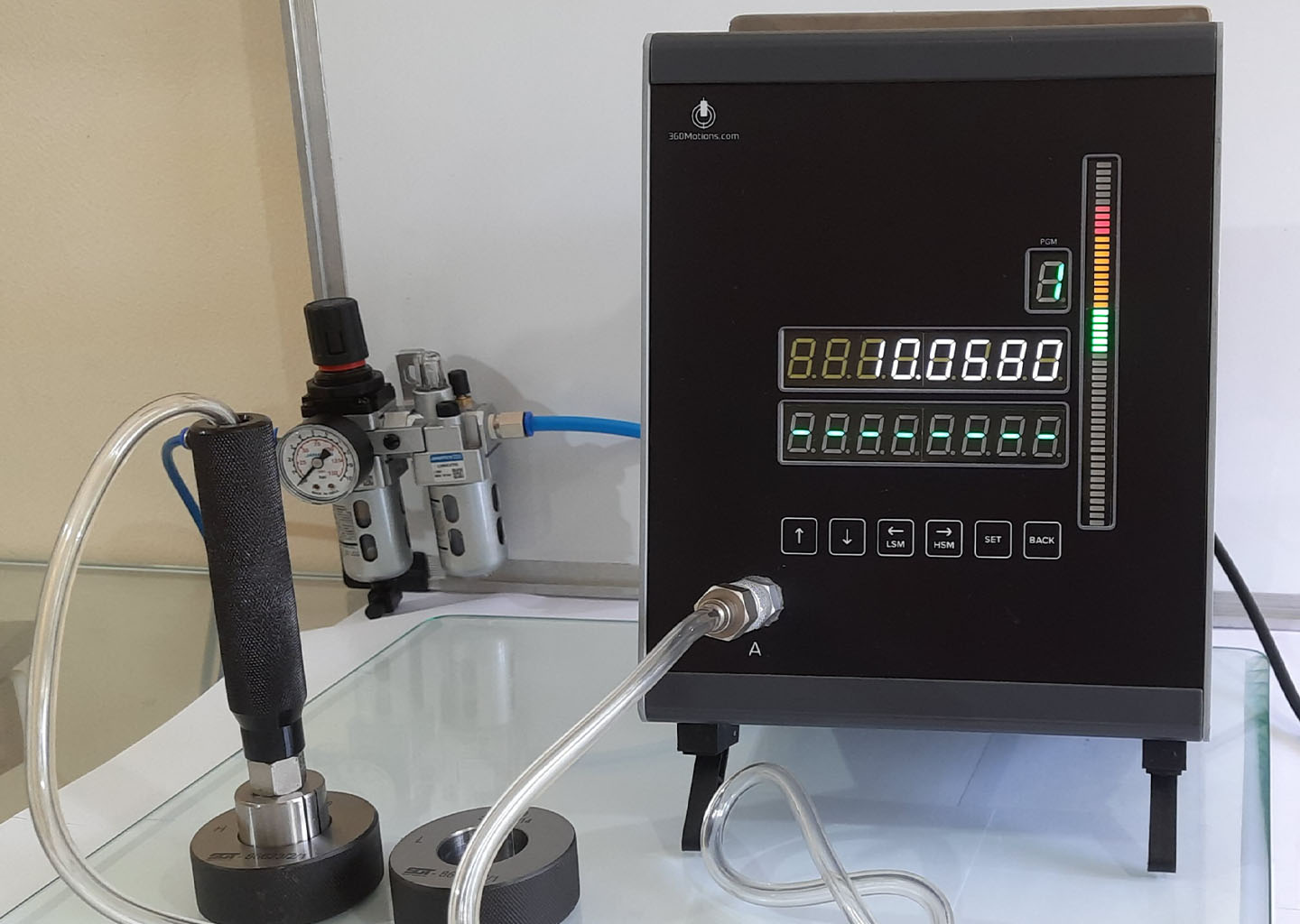

Product Overview

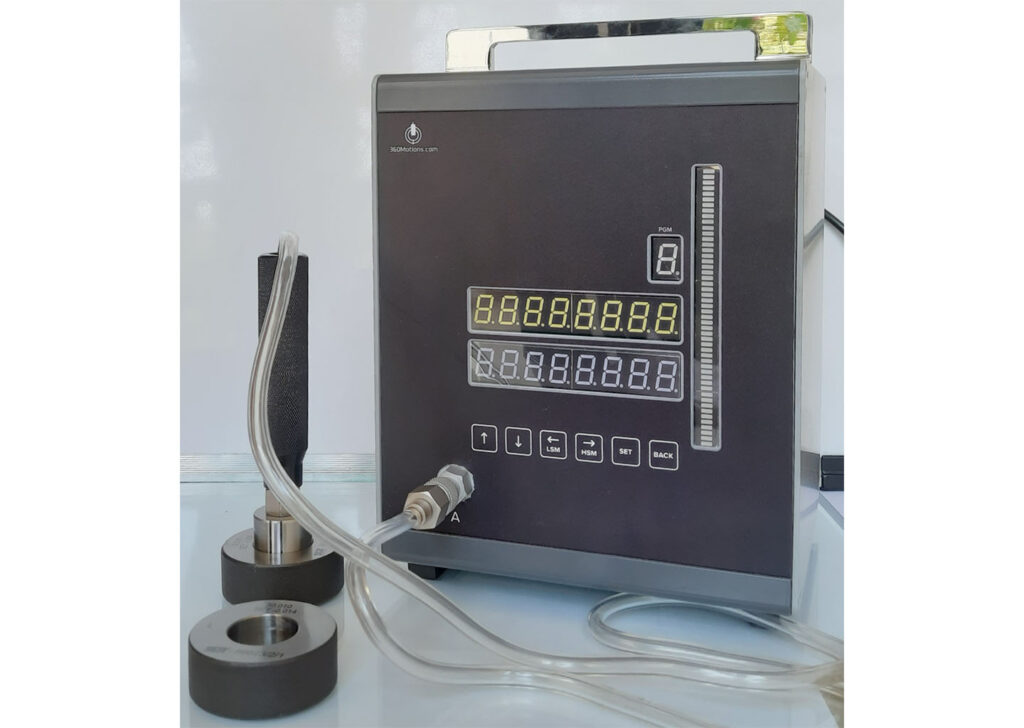

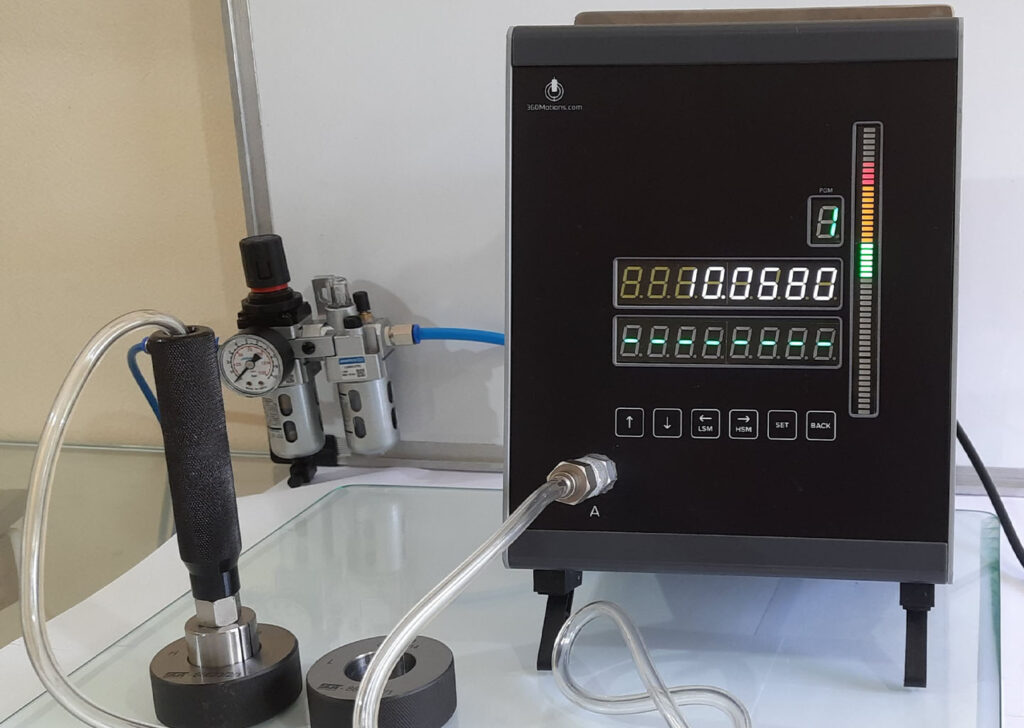

High-precision non-contact metrology tool used to measure internal diameters (bores), ovality, and taper using air pressure variation.

Functions & Features

• LED Bar Graph
• Program Counter
• Setting Segment
• Output Segment

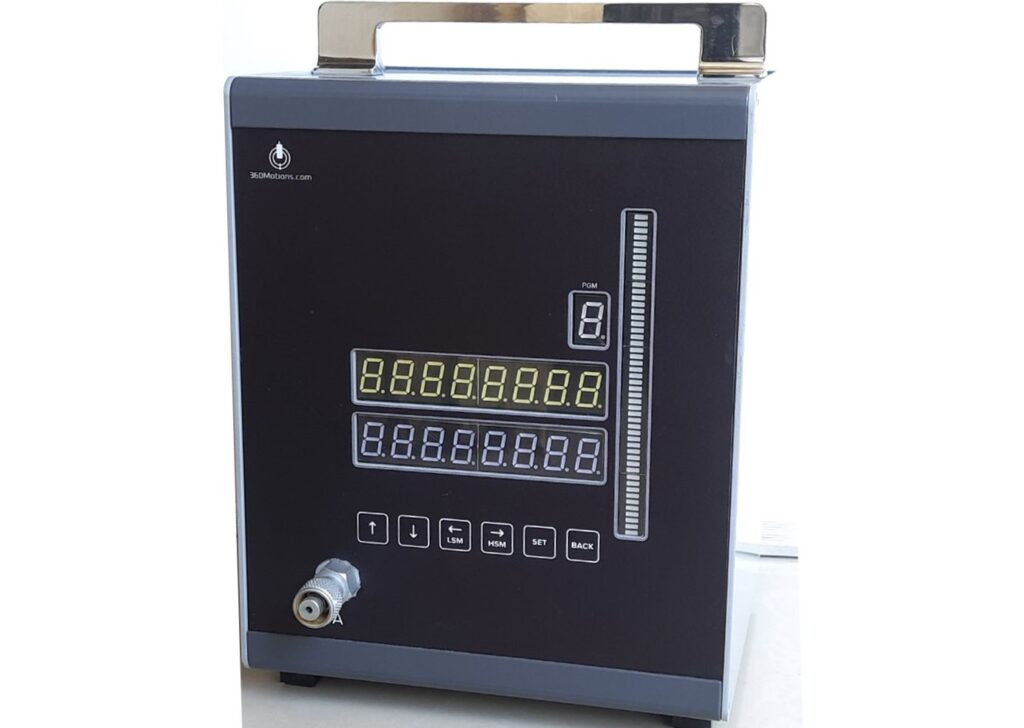

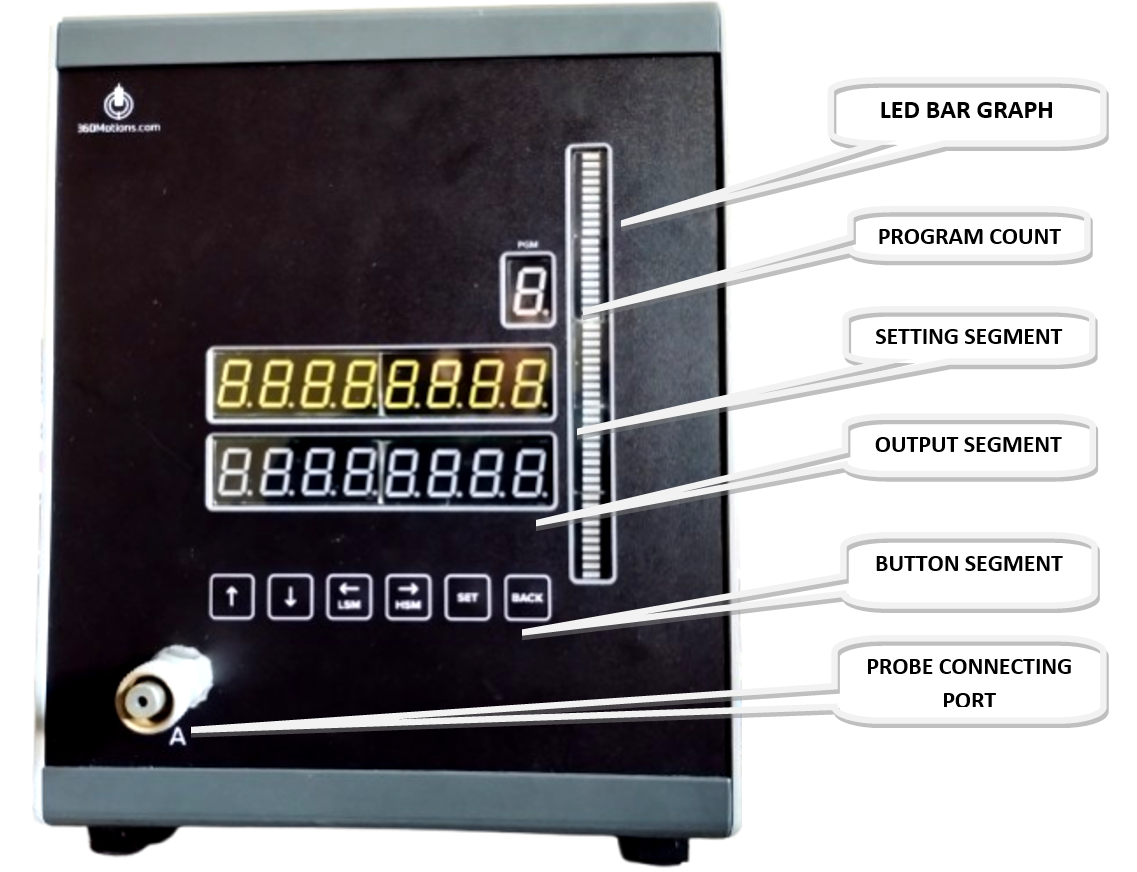

Front Panel Layout

• 7-segment display with adjustable brightness
• 8-character white & green display
• Program indicator (1–5)
• LED bar graph (Red/Yellow/Green)

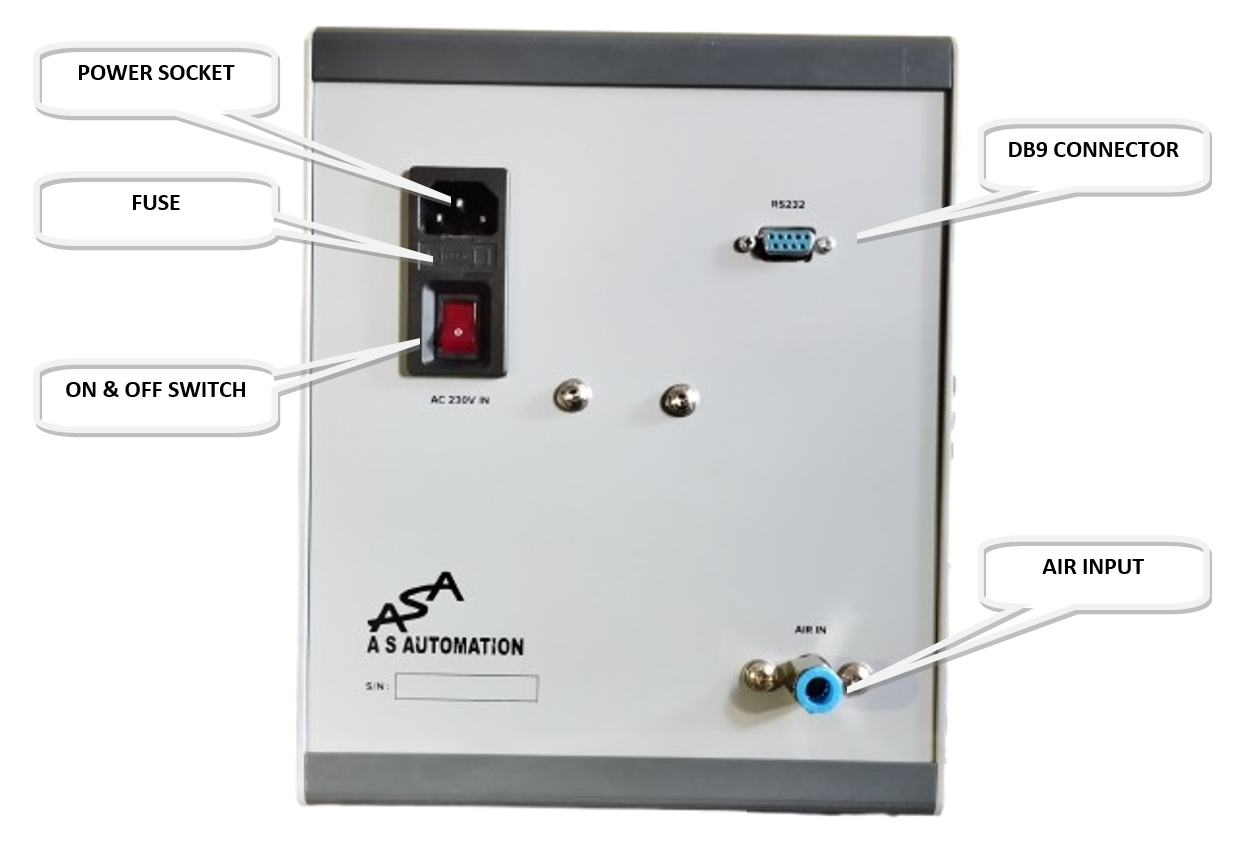

Back Panel Layout

• DB9 Connector
• Power Plug with Fuse
• Air Input
• ON/OFF Switch

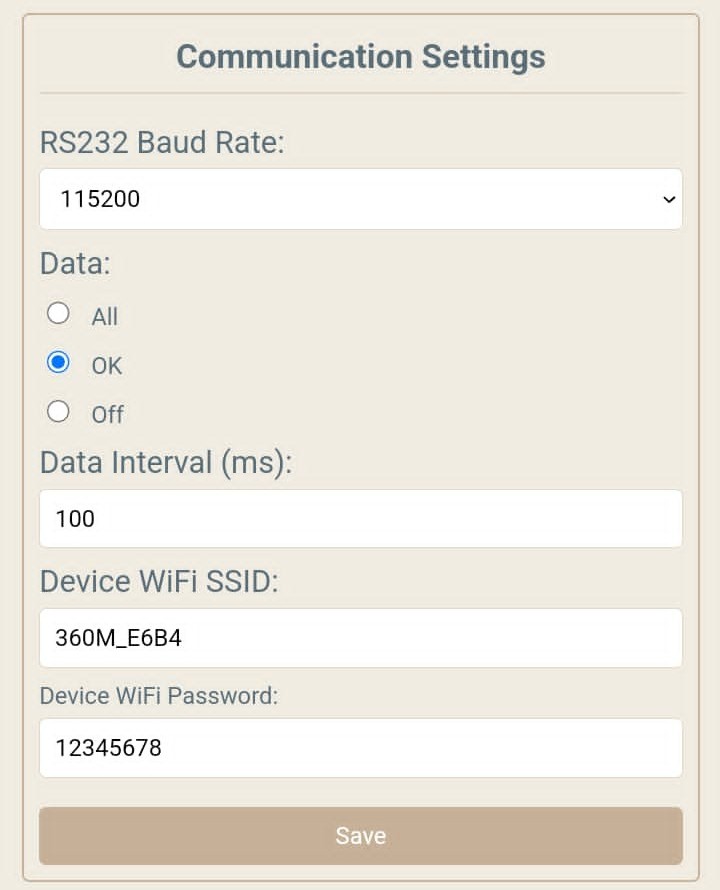

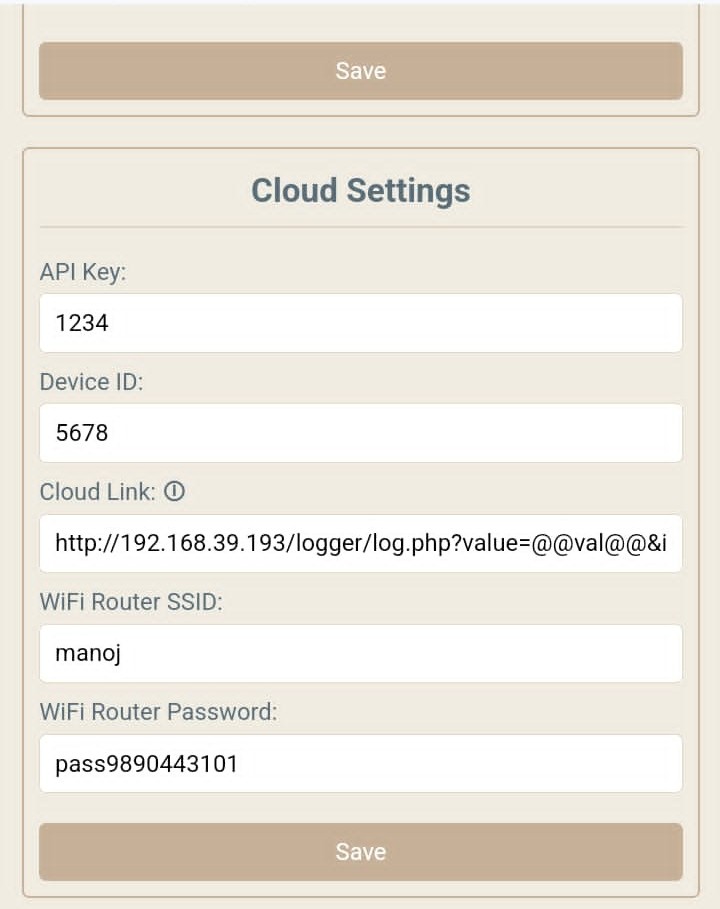

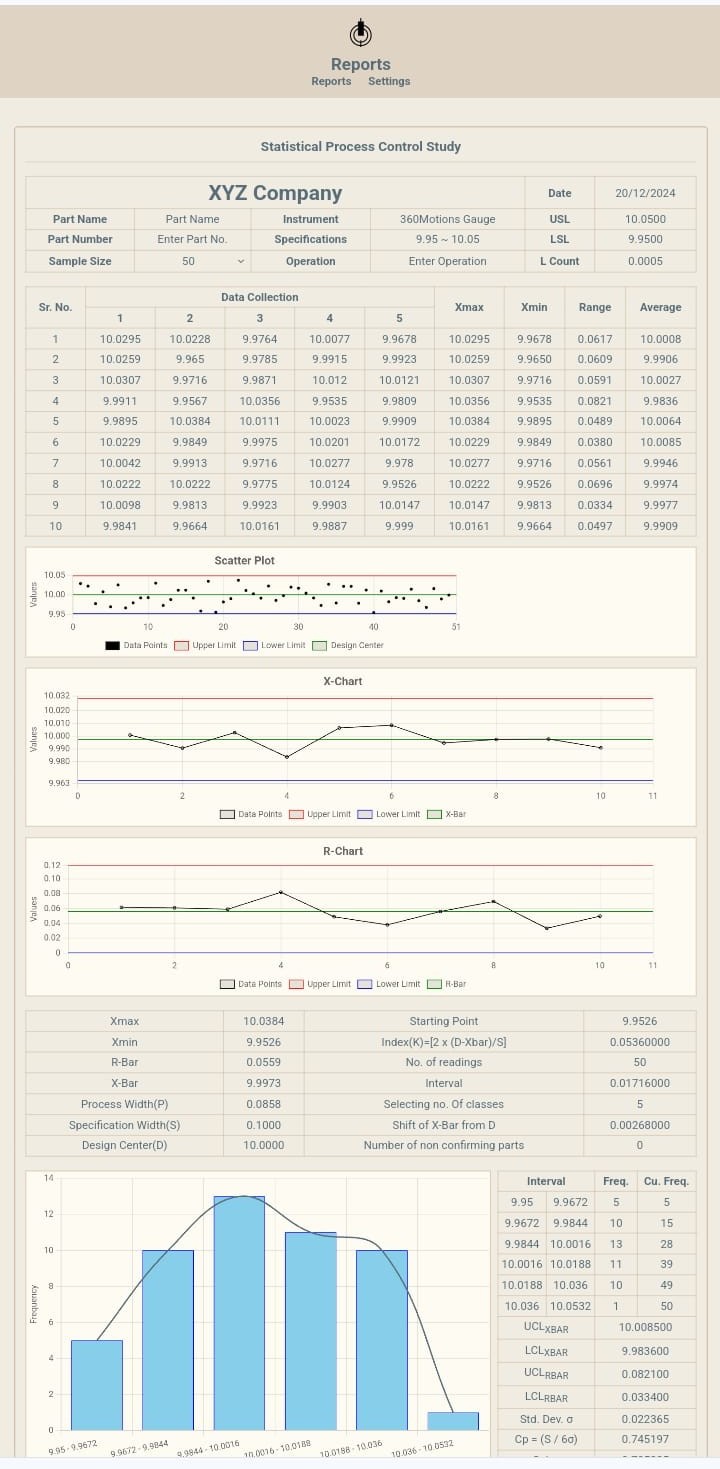

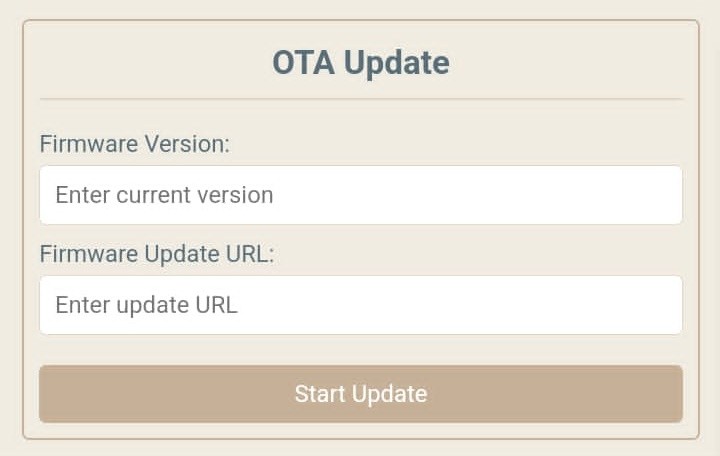

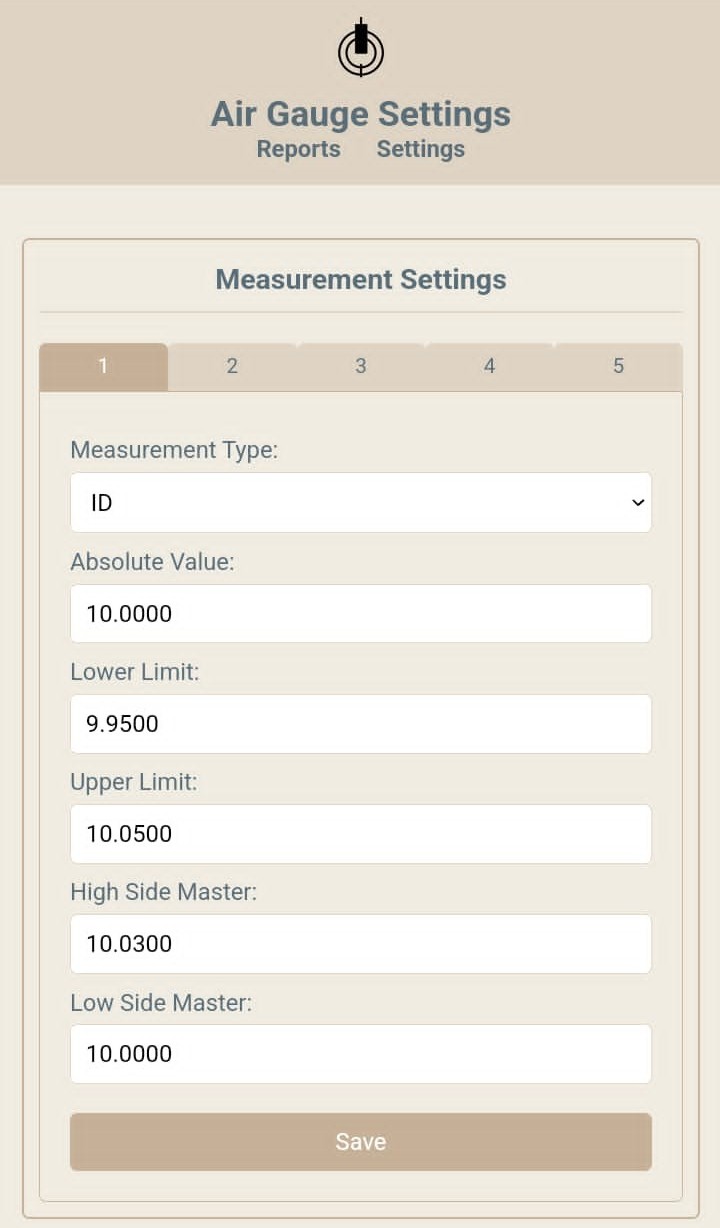

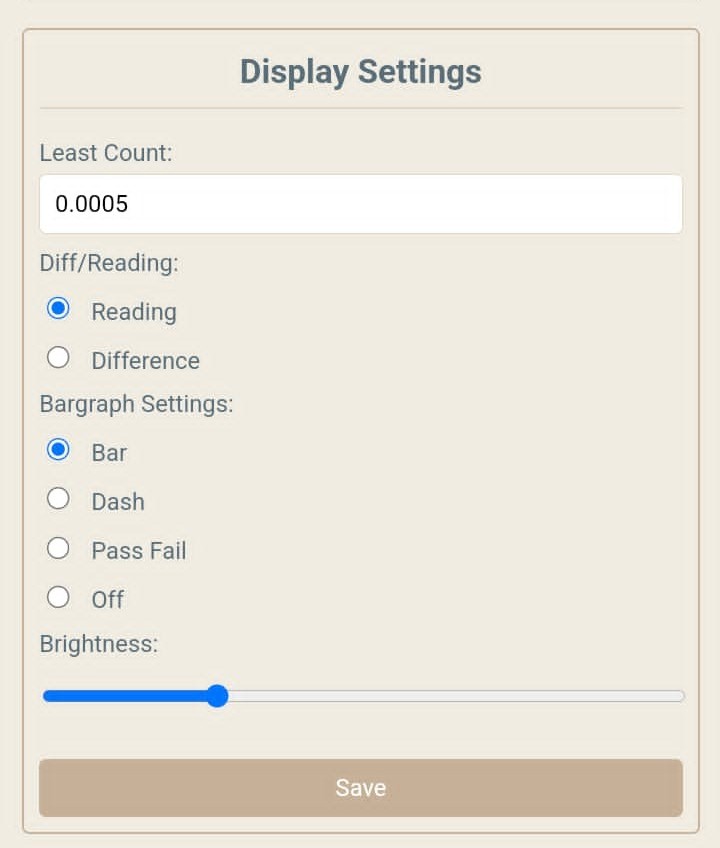

Measurement Results and Settings

Measure with Confidence – Go Digital with Air Gauges
